PPLN (Periodically Poled Lithium Niobate)

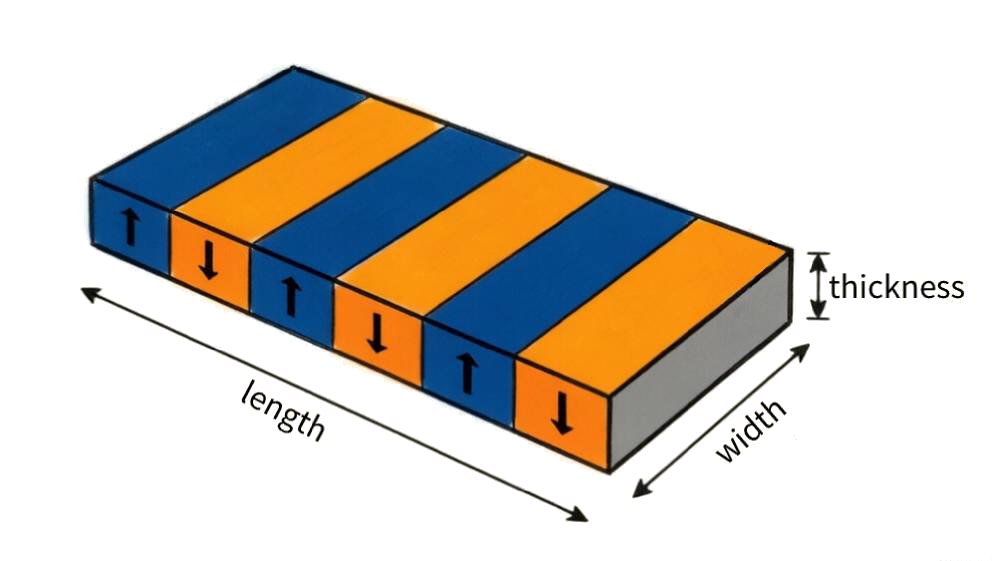

PPLN is a highly efficient nonlinear optical crystal based on the core principle of Quasi-Phase Matching (QPM). By periodically reversing the polarization direction within the crystal, it effectively compensates for phase mismatches, significantly boosting the efficiency of laser wavelength conversion.
Main Categories
- Bulk PPLN: Ideal for standard free-space optical setups, widely used in high-power laser systems.
- Waveguide PPLN: Confines light within micro-scale channels, offering ultra-high conversion efficiency and easy integration with optical fibers.
- Doped PPLN: Enhanced with Magnesium Oxide (MgO) to significantly improve resistance to optical damage, making it perfect for high-power applications and stable room-temperature operation.
Technical Specifications
Type
SHG/OPO, etc.
Grating Type
Single/Multi/Chirp/Fan-out/Cascade, etc.
QPM Period
4.0μm ~ 200μm
Wavelength Range
330nm ~ 5.5μm
QPM Temperature
25°C ~ 200°C
Flatness
λ/6 @ 633nm
Parallelism
< 10"
Perpendicularity
< 10'
Surface Quality
10-5
Coating
Anti-Reflection (AR) or High-Reflection (HR)
| Pro Name | Specs | Price |
|---|---|---|
| Single-Period PPLN Crystal Chips |
View Specs
|
Description：......
